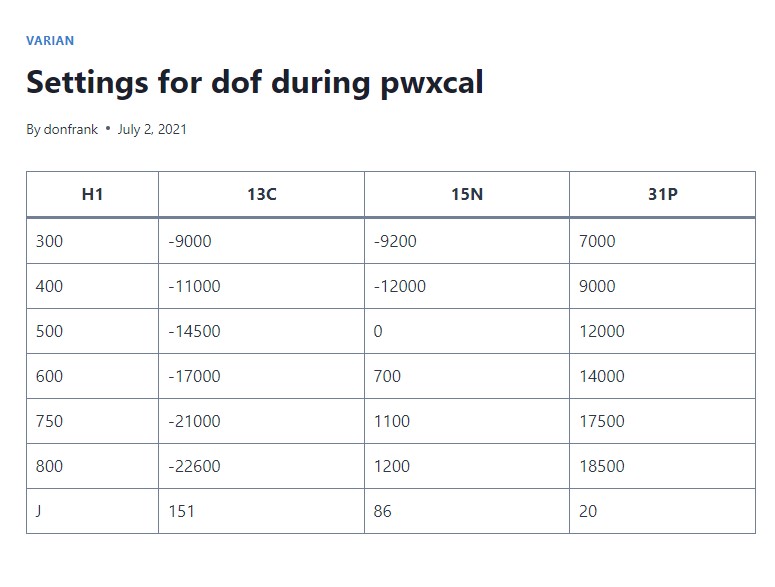

Settings for dof during pwxcal
| H1 | 13C | 15N | 31P |
|---|---|---|---|
| 300 | -9000 | -9200 | 7000 |
| 400 | -11000 | -12000 | 9000 |
| 500 | -14500 | 0 | 12000 |
| 600 | -17000 | 700 | 14000 |
| 750 | -21000 | 1100 | 17500 |
| 800 | -22600 | 1200 | 18500 |
| J | 151 | 86 | 20 |
